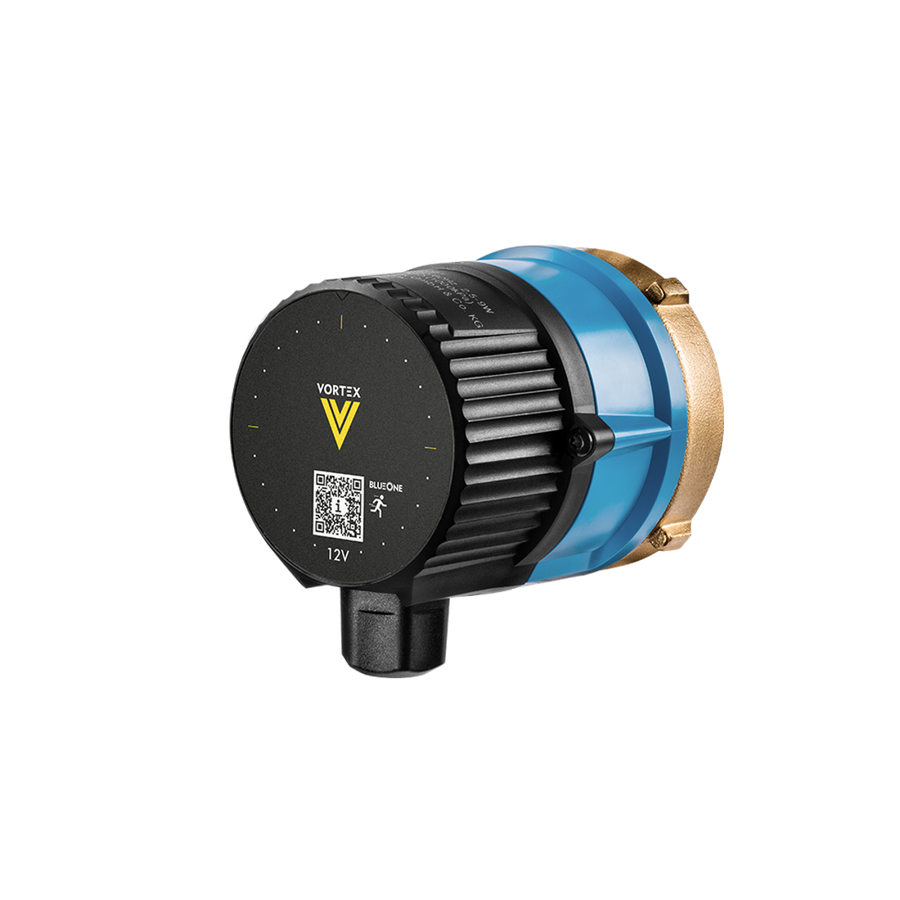

Vortex Universal-Motor BWO 155 12 V, Dauerläufer
Vortex Universal-Motor BWO 155
12 V, Dauerläufer
12 V, Dauerläufer
- Anschluss Einlassseite
- -
- Schutzart (IP)
- IP44
- Elektrischer Anschluss
- Anschlussklemmen
- Unterstützt Protokoll für EtherNet/IP
- nein
- Produktklasse
- Umwälzpumpe
- Mediumtemperatur (Dauerbetrieb) [°C]
- 2 - 95 °C
- Max. Arbeitsdruck [bar]
- 10 bar
- Doppelpumpe
- nein
- Unterstützt Protokoll für Modbus RTU
- nein
- Drehzahl [1/min]
- 3000 1/min
- Potentialfreier Schaltkontakt
- nein
- Förderhöhe bei Volumenstrom (BEP) [kPa]
- 9,8 kPa
- Einbaulänge [mm]
- 125 mm
- Serie
- BWO
- Kommunikation
- ohne
- Unterstützt Protokoll für LON/LONWorks
- nein
- Funkstandard WLAN 802.11
- nein
- Isolationsklasse nach IEC
- F
- Volumenstrom (BEP) [m³/h]
- 0,35 m³/h
- Umgebungstemperatur [°C]
- 2 - 40 °C
- UBA-Positivliste
- ja
- Nennstrom [A]
- 0,02 A
- Max. Volumenstrom [m³/h]
- 0,95 m³/h
- Mobilfunkstandard 5G
- nein
- Max. Förderhöhe [m]
- 1,3 m
- Funkstandard Bluetooth
- nein
- Aufgenommene Motorleistung (P1) pro Motor [kW]
- 0,007 kW
- Nenndurchmesser Anschluss Einlassseite
- -
- Unterstützt Protokoll für BACnet MS/TP
- nein
- Unterstützt Protokoll für PROFIBUS
- nein
- Mit Kommunikationsschnittstelle RS-485
- nein
