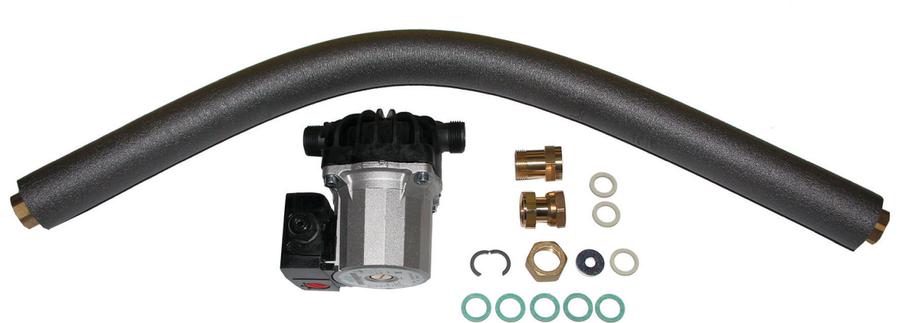

Wolf Set Zirkulationspumpe 3/4", für TS-160, TR-160
Wolf Set Zirkulationspumpe
3/4", für TS-160, TR-160
3/4", für TS-160, TR-160
- Aufgenommene Motorleistung (P1) pro Motor [kW]
- 0,048 kW
- Frequenz
- 50 Hz
- Max. Volumenstrom [m³/h]
- 1,5 m³/h
- Unterstützt Protokoll für PROFIBUS
- nein
- Nenndurchmesser Anschluss Einlassseite
- 3/4 Zoll
- Funkstandard WLAN 802.11
- nein
- Einbaulänge [mm]
- 130 mm
- Mit Kommunikationsschnittstelle RS-485
- nein
- Max. Arbeitsdruck [bar]
- 10 bar
- Anschluss Einlassseite
- Außengewinde zylindrisch BSPP (ISO 228-1)
- Anzahl der Phasen
- 1
- Bemessungsspannung [V]
- 230 V
- Unterstützt Protokoll für EtherNet/IP
- nein
- Volumenstrom (BEP) [m³/h]
- 1,5 m³/h
- Werkstoff des Pumpengehäuses
- Polypropylen (PP)
- Elektrischer Anschluss
- Anschlussklemmen
- Potentialfreier Schaltkontakt
- nein
- Isolationsklasse nach IEC
- F
- Unterstützt Protokoll für Modbus RTU
- nein
- Kommunikation
- ohne
- Produktklasse
- Umwälzpumpe
- Unterstützt Protokoll für LON/LONWorks
- nein
- Funkstandard Bluetooth
- nein
- Schutzart (IP)
- IP42
- Mobilfunkstandard 5G
- nein
- Unterstützt Protokoll für BACnet MS/TP
- nein
